The Nabertherm GF 75-1425 glass-fusing kilns are engineered for professional standards: quartz-tube elements ensure even temperature, while optimised insulation with Solar Mode and a double-wall stain...
+ Read product features

Technical Sheet

Detailed description

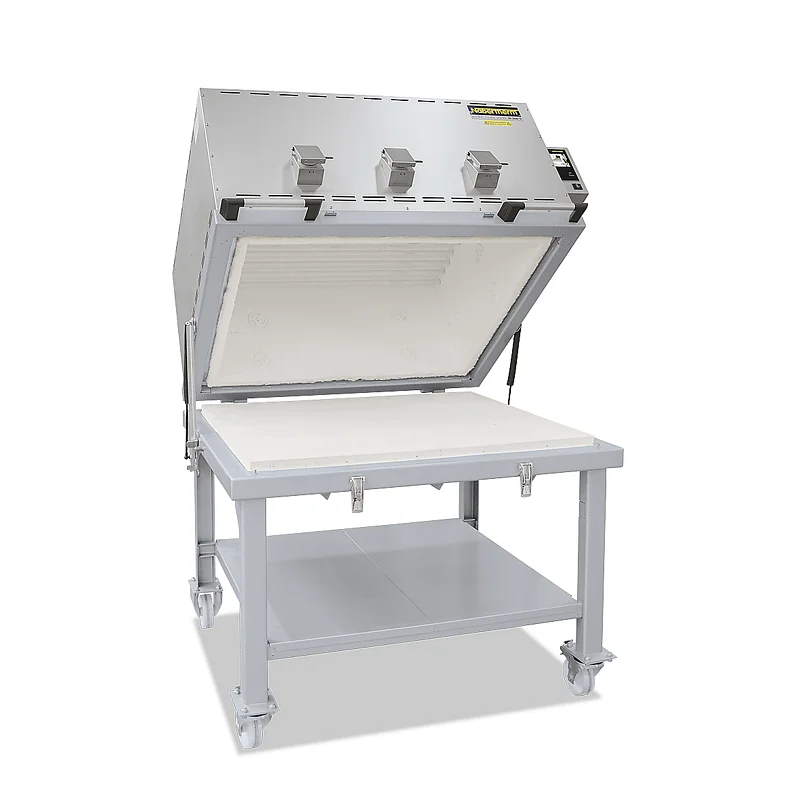

The Nabertherm GF 75-1425 glass-fusing kilns are engineered for professional standards: quartz-tube elements ensure even temperature, while optimised insulation with Solar Mode and a double-wall stainless body cut energy use. The AC590 6.8-inch touchscreen controller with Wi-Fi and USB provides 50 editable programs for fast, traceable cycles in glass fusing or bending.

Key features

  • Quartz-tube heating elements for even heat
  • Gas-spring-assisted lid opening
  • Flat, robust refractory brick table
  • CLP-safe insulation materials
  • NTLog Basic & MyNabertherm app

Technical specifications

  • AC590 controller: 6.8" touchscreen, 50 programs, 40 ramps, Wi-Fi/USB
  • Double-wall stainless body; optimised insulation, Solar Mode
  • Robust refractory hearth, rapid heat-up
  • Data logging via NTLog Basic; hour & kWh counter, error archive
  • Kiln furniture set sold separately

Additional informations

Max. Temp
950°C
Internal Width
1210 mm
Internal Depth
1160 mm
Internal Height
400 mm
Length
1660 mm
Depth
1520 mm
Height
1460 mm
Weight in kg
550 kg
Power
15,0 Kw
Voltage
380 ~ 400 V - 50 HZ
Phase
Trifase
Plug
5 Poli - 32 Ampere

Details

Code
58264
Unit of measure
PZ
Brand
Nabertherm Gmbh
Manufacturer ID
GF-0526AN-DB
