CART

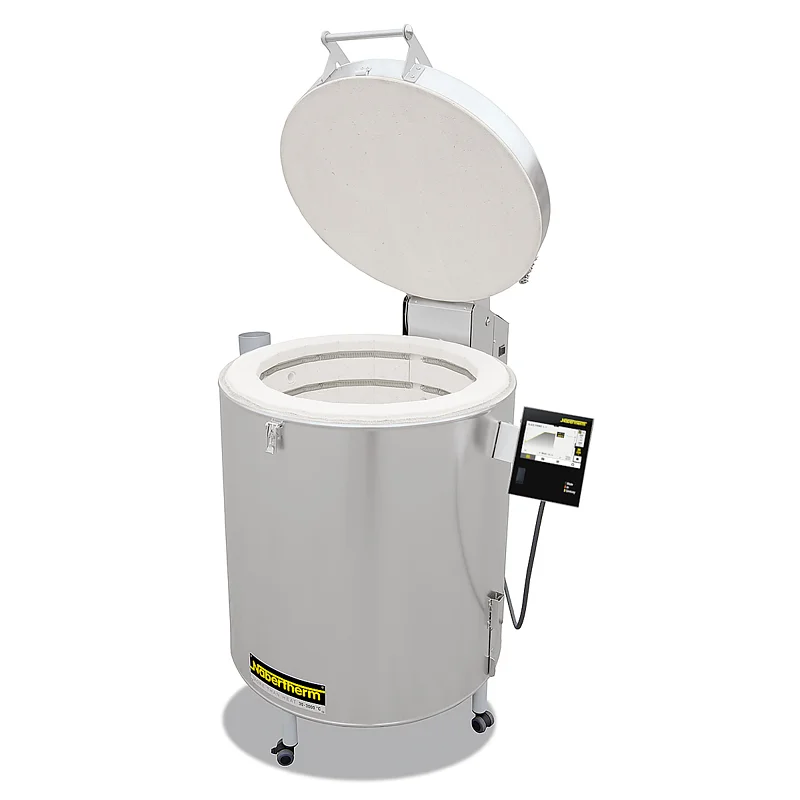

NABERTHERM KILN TOP 100
F007627
Filters
COMPUTER TYPE|
COMPUTER TYPE |
PRICE | Q.TY | ||
|---|---|---|---|---|
|
AC590 |
€ 4.806,95
€ 5.059,95
€ 3.940,13 ex VAT € 4.147,50 |
Accessories
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
KILN FURNITURE SET - 4 SHELVES D. 420 MM + POSTS |
€ 244,95
€ 200,78 ex VAT |
|
|
REFRACTORY SHELF ROUND D.420X12MM |
€ 50,95
€ 41,76 ex VAT |
Spare parts
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
NABERTHERM TOP 100 - HEATING ELEMENTS SET |
€ 384,95
€ 315,53 ex VAT |
Detailed description
The Nabertherm Top 100 electric kiln is a 7 kW three-phase unit with a 100 L chamber that fires to 1320 °C for high-fire stoneware and porcelain. Designed for studios, schools and artisan production, it offers recessed coils for even heat, low-loss ceramic-fiber insulation, easy mobility via lockable castors, and Wi-Fi-enabled AC590 touchscreen control.
Key features
- Recessed heating coils for uniform firing
- Firebrick + ceramic-fiber lining for energy efficiency
- Certified non-carcinogenic materials
- Durable stainless-steel shell, easy to clean
- Embedded thermocouple for precise control
- Lockable castors and AC590 controller with Wi-Fi
Technical specifications
- Power supply: 400 V, 3-phase, 7 kW, red CEE plug
- Chamber volume: 100 L
- Maximum temperature: 1320 °C (high-fire ≤ 1280 °C)
- Controller: AC590, 6.8" touchscreen, 50 programs, Wi-Fi “Conny”
- Construction: firebrick + ceramic-fiber; stainless shell; lockable castors
- Accessories: kiln furniture set sold separately
Additional informations
Capacity
100 liters
Max. Temp
1320°C
Internal diameter
480 mm
Internal Height
570 mm
Length
660 mm
Depth
960 mm
Height
1030 mm
Weight in kg
97 kg
Power
7,0 Kw
Voltage
380 ~ 400 V - 50 HZ
Phase
Trifase
Plug
5 Poli - 16 Ampere
Details
Code
F007627
Unit of measure
PC
Brand
Nabertherm Gmbh
