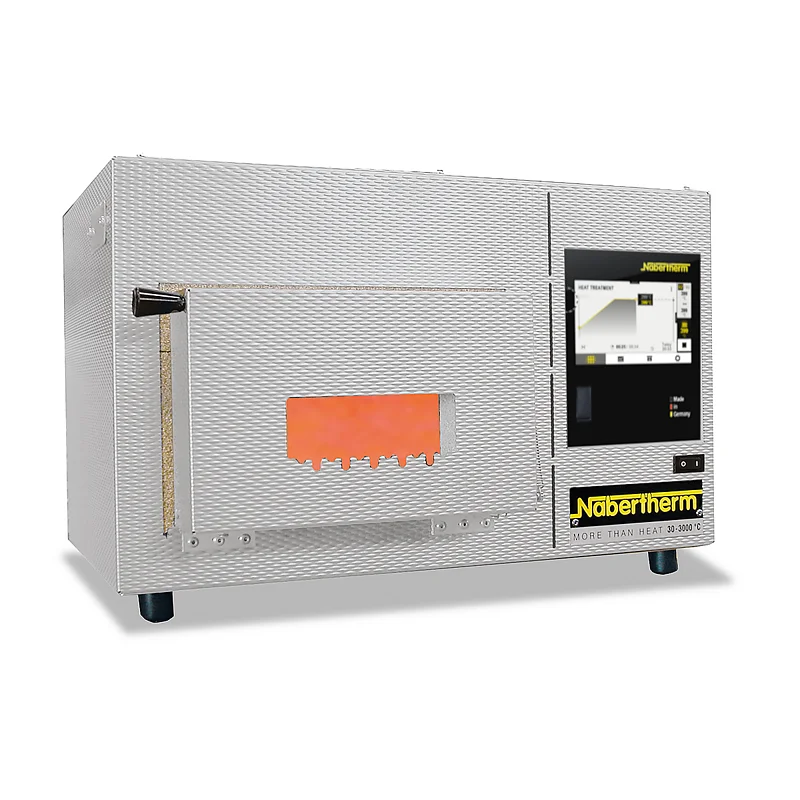

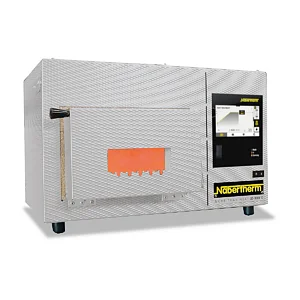

NABERTHERM MF5 KILN

Nabertherm MF 5 annealing kiln is purpose-built for large glass beads and jewellery. A slit door for bead mandrels, infrared top heating in quartz tubes and multi-layer insulation deliver uniform temperatures up to 950 °C, allowing the kiln to be opened mid-cycle without shutting off. A 6.8″ AC590 touchscreen controller is fitted as standard.

Key features

• Compact benchtop design
• Infrared top elements in quartz tubes
• Slit door for bead mandrels
• Silent solid-state relay
• Wi-Fi & MyNabertherm app

Technical specifications

• Max temperature 950 °C
• AC590 6.8″ touchscreen: 50 programs × 40 segments
• NTLog Basic (USB) + NTGraph/NTEdit
• Multi-layer insulation; non-carcinogenic materials TRGS 905 class 1/2
• Textured stainless-steel housing
