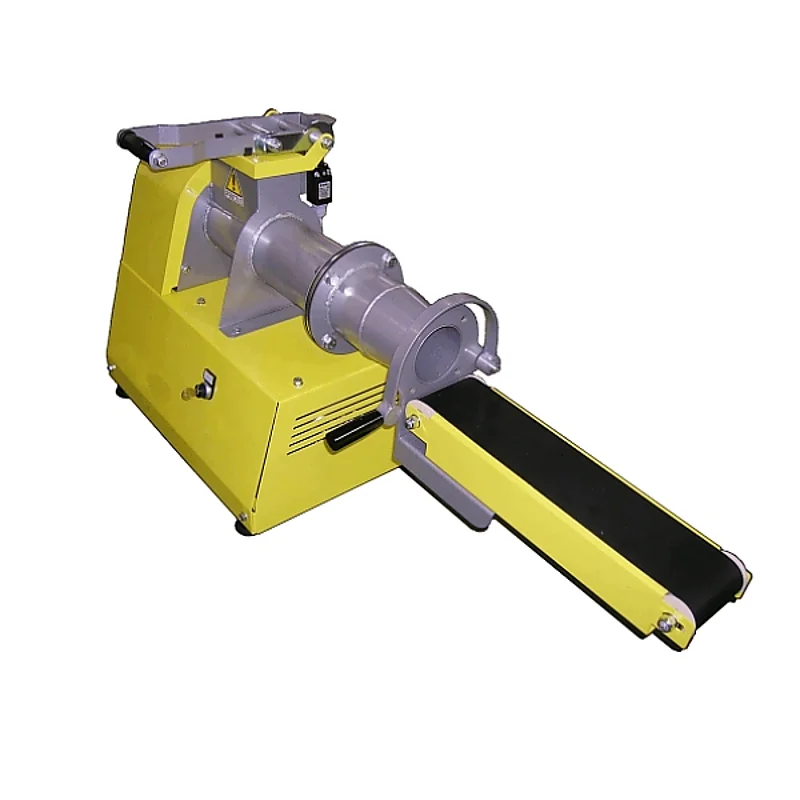

POTTERY PUGMILL HLM90/F - 320 KG/H

This pottery Pugmill, made of bent iron elements, is the ideal solution for mixing and homogenising ceramic mixtures in a plastic state.
The HLM90/F is particularly suitable for schools and small workshops that need to knead red clays and earthenware
By inserting shaped dies, it is capable of extruding profiles of different shapes and nature, finding its natural field of application in hobby and artistic modelling.

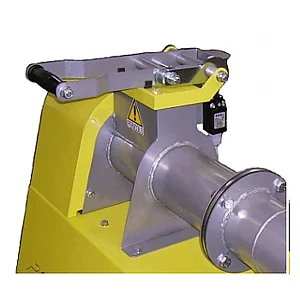

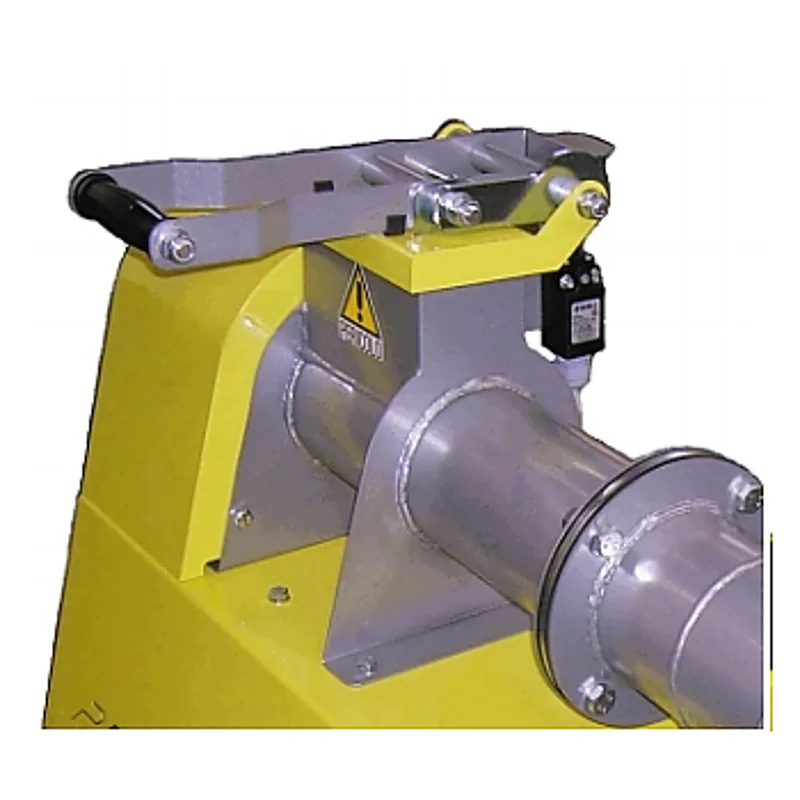

It consists of a sturdy support on which the extrusion body is assembled, equipped with a pressure lever cap, on which a safety micro switch acts. The drive unit is connected to the extrusion screw by means of a robust triple chain.

Key features:

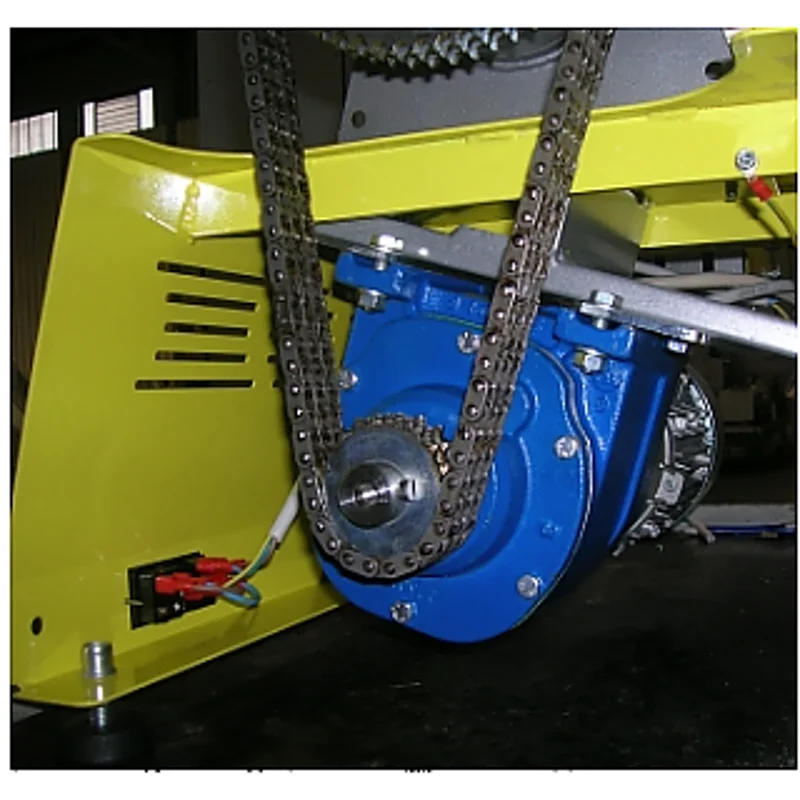

• Motorisation and transmission: electric motor fixed on the support and connected to the extrusion screw by means of a sturdy triple metal chain.

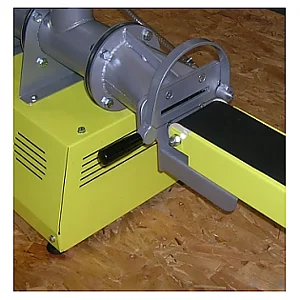

• Die holder connection with shaped die: a series of dies with standard shapes are available, or a special customised shape can be requested.

Technical specifications:

• Painted iron elements
• Maximum output 320 kg/h
• Extruder screw diameter: 90 mm
• Max. thread diameter: 85 mm
• Power: 750 W
• Voltage: 220 V - 50 Hz

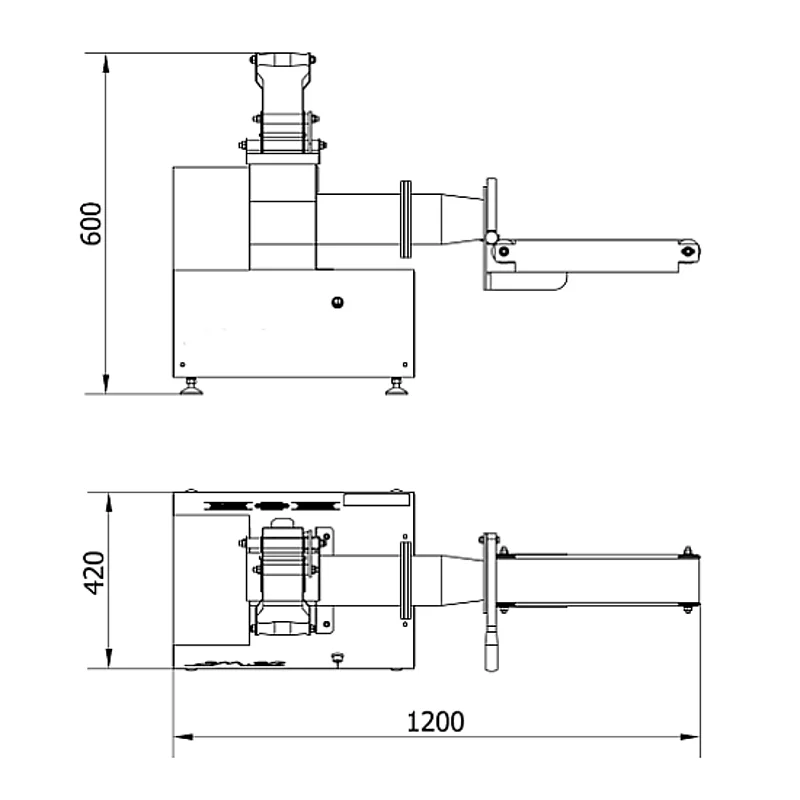

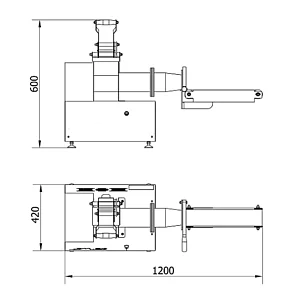

• Dimensions: 120 x 42 x 60 cm
• Weight: 80 kg
